Jiangsu Kangyuan Pharmaceutical Commercial Logistics Center
Time:2022-05-18
Share:

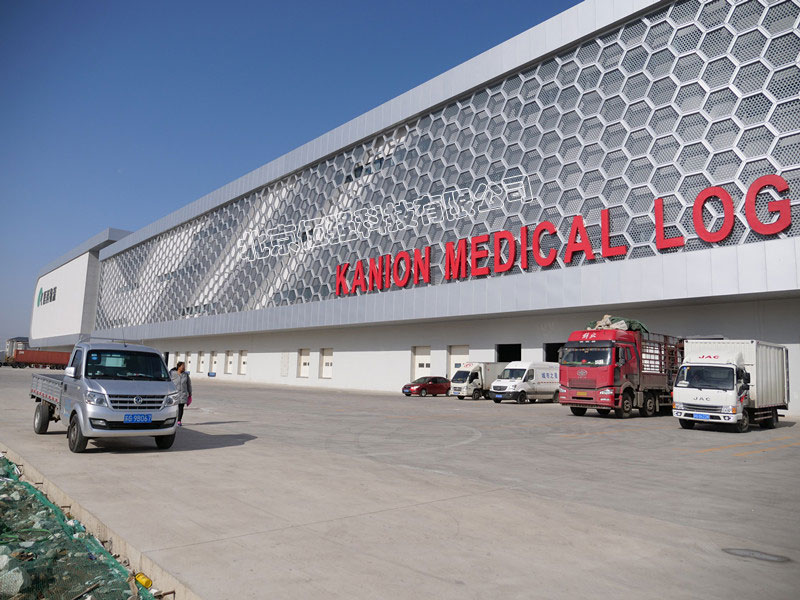

Jiangsu Kangyuan Pharmaceutical Commercial Co., Ltd. is a wholly-owned subsidiary of Kangyuan Group and a pharmaceutical commercial company radiating throughout the province in Lianyungang. The main warehouse of this intelligent logistics center covers an area of approximately 9700 square meters and is a combination of three-dimensional and flat warehouses. The three-dimensional warehouse covers an area of approximately 2800 square meters, with a total height of 23.9 meters; The flat warehouse has an overall 4-story structure. The logistics center has achieved a comprehensive improvement in the automation and informatization level of logistics warehousing, which not only improves the efficiency and service level of the company's overall supply chain, but also greatly reduces error rates.


        Logistics system composition:

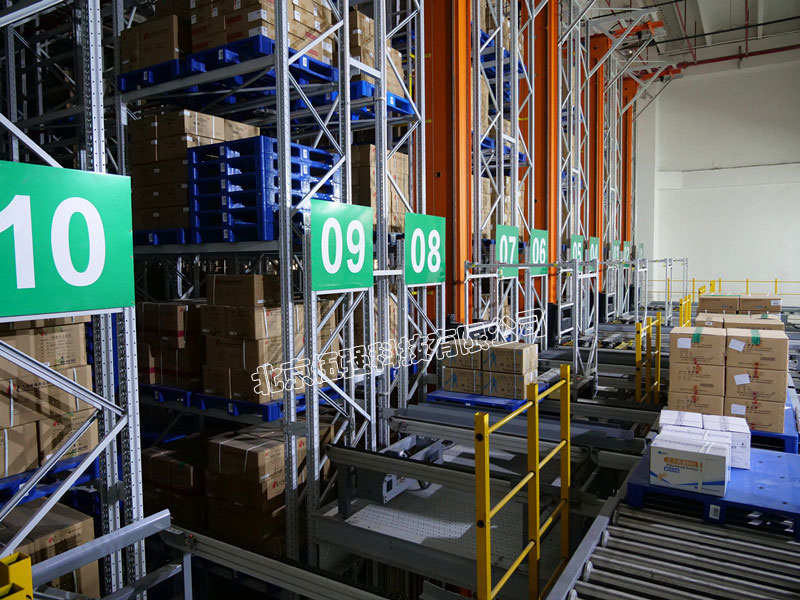

        1) Automated three-dimensional warehouse: 5 lanes, 5 stackers, 10560 pallet storage spaces, and two sets of pallet conveyor systems;;

        2) A set of barcode management system, including barcode readers, barcode printers, RF handheld terminals, and their communication systems;

        3) One set of computer monitoring system for the vertical warehouse

        4) Box conveyor line sorting system: The conveyor line is approximately 350 meters long, with a set of slider sorting machines, 4 spiral elevators, and 1 box elevator;

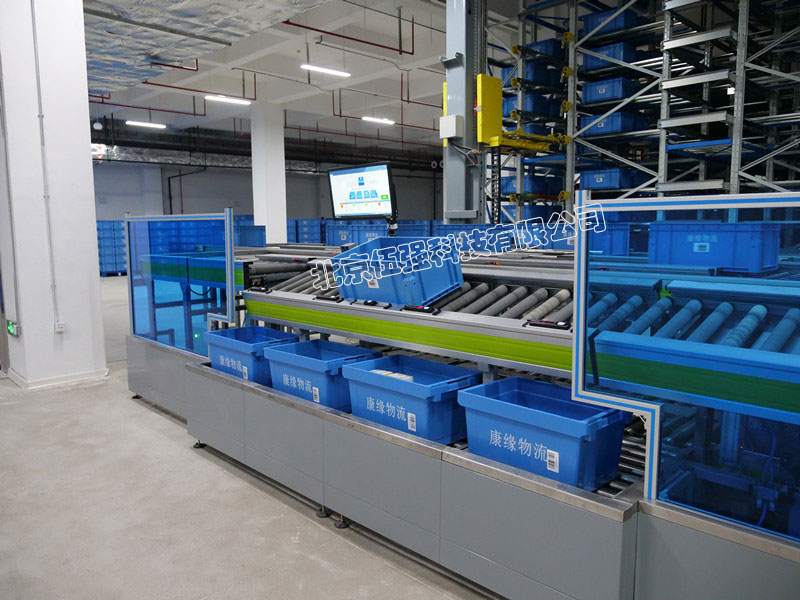

       5) A set of goods to person picking system, including picking workstation, box changing workstation, review workstation, etc

        6) One set of electronic label system

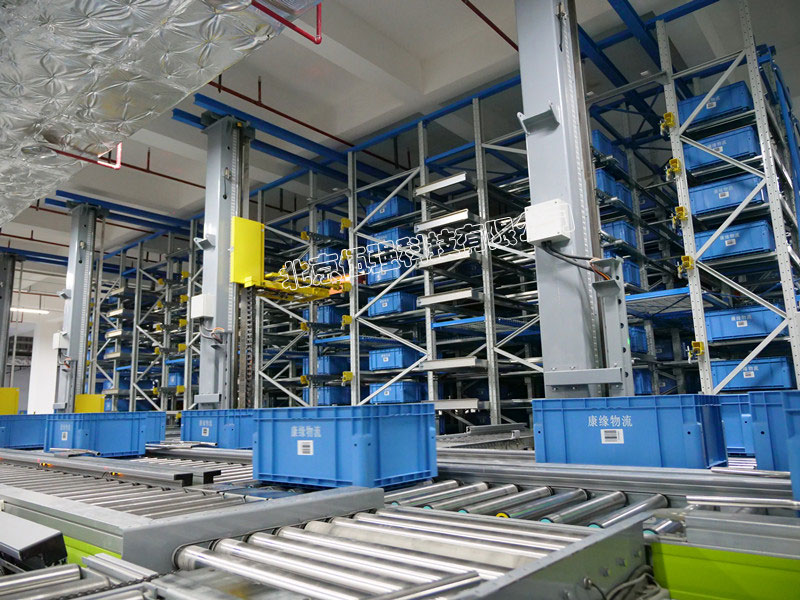

        7) Multi layer shuttle car system: 6 shuttle cars, 4 elevators, and 5292 container cargo spaces;

        8) Shelf shelves: including approximately 2740 box cargo spaces for room temperature storage partitions, 240 tray cargo spaces for crossbeam shelves, 3120 box cargo spaces for cold storage attic shelves, and 240 tray spaces for crossbeam shelves;

        9) One set of AGV system;

        10) One set of WMS system and WCS system.
