Jiangsu Sumida Logistics Center Project
Time:2022-05-19
Share:

Jiangsu Sumida Maji Intelligent Warehousing and Logistics Center is jointly built by the Liuhe District Government of Nanjing City and Jiangsu Sumida Eaton Jide Brand Management Co., Ltd. It is currently the largest school uniform intelligent warehousing and logistics complex in China. The logistics center has a building area of 10800 square meters, with the northernmost side being a three-dimensional warehouse area, which is a 24 meter high steel structure building; On the south side is a 4-story warehouse, used for operation and processing areas.


The automated three-dimensional warehouse area of this project covers an area of 3000 square meters, with a clearance of approximately 21.2 meters.

This area is designed with 5 alleys and 5 stackers. The front end of the three-dimensional warehouse is designed with a 3-story steel structure operation

platform, which is connected to the 2nd, 3rd, and 4th floors of the flat warehouse.


Based on the current inventory structure and the actual available space of the three-dimensional warehouse, this plan divides the shelf design of the

three-dimensional warehouse into two modes: 4 rows of 9-story high storage spaces and 6 rows of 12-story low storage spaces; The total number of

 goods is 7992.

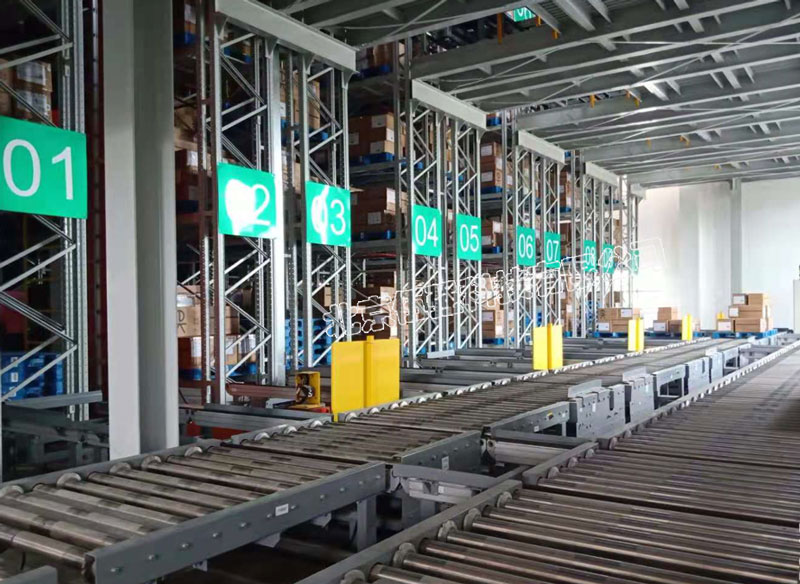

The tray conveying system on the first floor is designed as a circular structure, which can complete both inbound and outbound conveying, with a conveying

efficiency of 120 tons/hour; Design size and weight detection devices at the entrance of the warehouse, and automatically return trays that are overweight,

wide, and high to the sorting station; In addition, the size detection device can detect the height of the pallet and determine whether the pallet needs to

 enter a high or low cargo space.


The functions of the four story building are as follows:


1st floor: receiving, shipping, vehicle logo, supporting facilities, returns;


2nd floor: demolition and sorting, with a total of 31888 storage spaces;


3rd floor: e-commerce dismantling, sorting, and packaging;


4th floor: Replenishment storage and new business picking and packaging.
